Wraithworks WARP-15 Polymer Complete AR15 Lower Receiver - Black | Mil-Spec Parts Kit | Integral Buttstock & Textured Pistol Grip | Trap Door Buttplate
3 Remaining
SKU
WARP15-BLK-C
Wraithworks is pleased to announce launch of the WARP-15 Polymer AR15 Lower Receiver. This lower receiver comes with installed Wraithworks Exclusive injection molded buttplate w/ trap door.

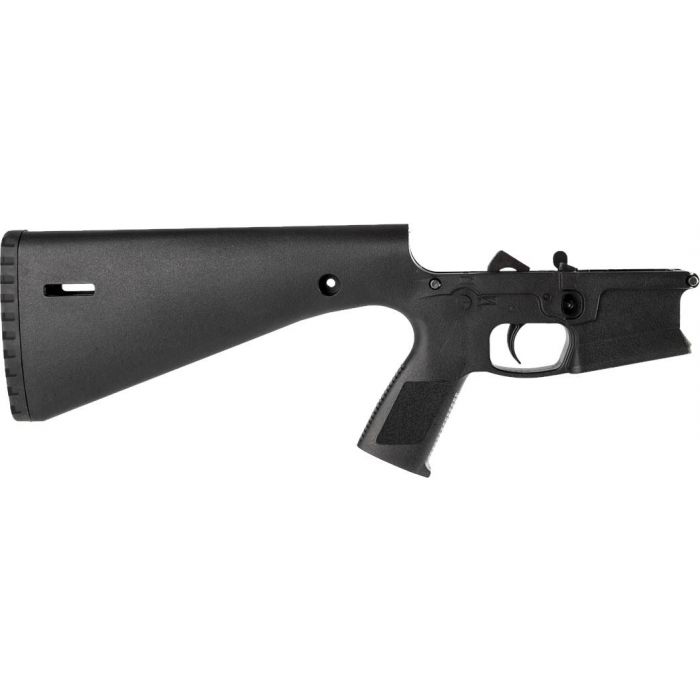

The WARP-15 is a monolithic polymer AR15 style receiver made from injection molded 30% glass filled nylon incorporating the buttstock, buffer tube, pistol grip, and trigger into the receiver design as integral components.
This manufacturing process offers several advantages
- Lighter weight compared to similarly configured receivers
- Lower cost to similarly configured receivers
- Increased production speed and elimination of sub components through integration; especially important during high demand cycles in the market.
Features Include:
- Compatibility with most common AR15 uppers and lower parts kits
- Flared magwell to make reloads under stress easier to perform.
- A1 Length 13” Length of Pull (LOP) Buttstock to fit a wide range of shooters
- MLOK Slots at rear of stock for sling attachement points or run a strap through it for simple sling attachment
- Holes at the front of the stock for QD socket inserts for more sling attachment options
- “Winter” Trigger Guard
- Wraithworks Exclusive Heavy Texture Pistol Grip
- Wraithworks Exclusive injection molded buttplate w/ trap door
Complete Mil-Spec FCG Lowers Include:
- Mil-Spec FCG
- KP-15 Optimized Selector
- KP-15 Long Hammer Pin
- Carbine Buffer and Spring
- Buffer Detent Assembly
- Mil-Spec Mag Catch Assembly
- Bolt Catch Assembly
- KP-15 Take Down/Pivot Pins
- Buttplate
Technical Information
- The WARP-15 receiver uses a Carbine buffer and spring. Do NOT use anything other than standard carbine buffers and round springs or the JP SCSS in the WARP-15.
- The Take Down and Pivot Pins have the detents built into them; eliminating the spring and detent holes in the lower increases durability.
- The buffer detent (should you choose to use it) is held in place with a 5/64” Roll Pin
- The WARP-15 is compatible with all Mil-Spec Fire Control Groups
- The WARP-15 is compatible with cassette style match triggers including the KE Arms DMR and SLT units. The retention system of these triggers with D-Clips in the bushings to retain the fire control pins makes them better suited for use in the WARP-15 than other designs that require captured pins.*
- The hammer pin area is wider for durability; Standard AR15 hammer pins can still be used but we offer a longer hammer pin for customers preferring a flush pin for aesthetic reasons.
- Safety selector spring and detent load from the top and then the selector is slid over them. Standard selectors can work but removing them can be particularly difficult. We recommend the use of our optimized mil-spec selector or optimized ambi selector to make removal easier. Follow our assembly guide for further instructions.
- The WARP-15 is compatible with standard AR15 uppers in calibers including .223/5.56mm NATO, .300 Blackout, 7.62x39mm, 6.5mm Grendel, 6.8mm SPC, .350 Legend; make sure you use the appropriate weight carbine buffer for your rifle to eject casings at 3:00-4:00.
- The WARP-15 is compatible with 9mm blowback systems with a 5.4oz carbine buffer minimum. Use heavier buffers as long as your gun can cycle reliably. Failure to use this minimum buffer weight can damage the lower.
- Big Bores: .450 Bushmaster, .458 SOCOM, .50 Beowulf, .50 BMG: We will never test these calibers enough to guarantee function and durability over time; use at your own risk.
SKU | WARP15-BLK-C |
---|---|
UPC | 810046200025 |
MPN | WARP15-BLK-C |
Manufacturer | Wraithworks |
Model | WARP-15 Polymer Complete AR15 Lower Receiver |
Condition | New |
Configuration | Complete |
Lower Type | AR15 |
Mag Pattern | AR15 |
Material | Polymer |
MFG Process | Injection Molded Glass Filled Nylon |
Trigger Guard | Integral |
Buttstock | Synthetic |
CA Legal | No |
